144 Count Fiber Color Chart
Horizontal reference for truck or splice lab
📱 Tip: Rotate your phone sideways (landscape) for the best view
← Scroll sideways if needed · Download full size below →

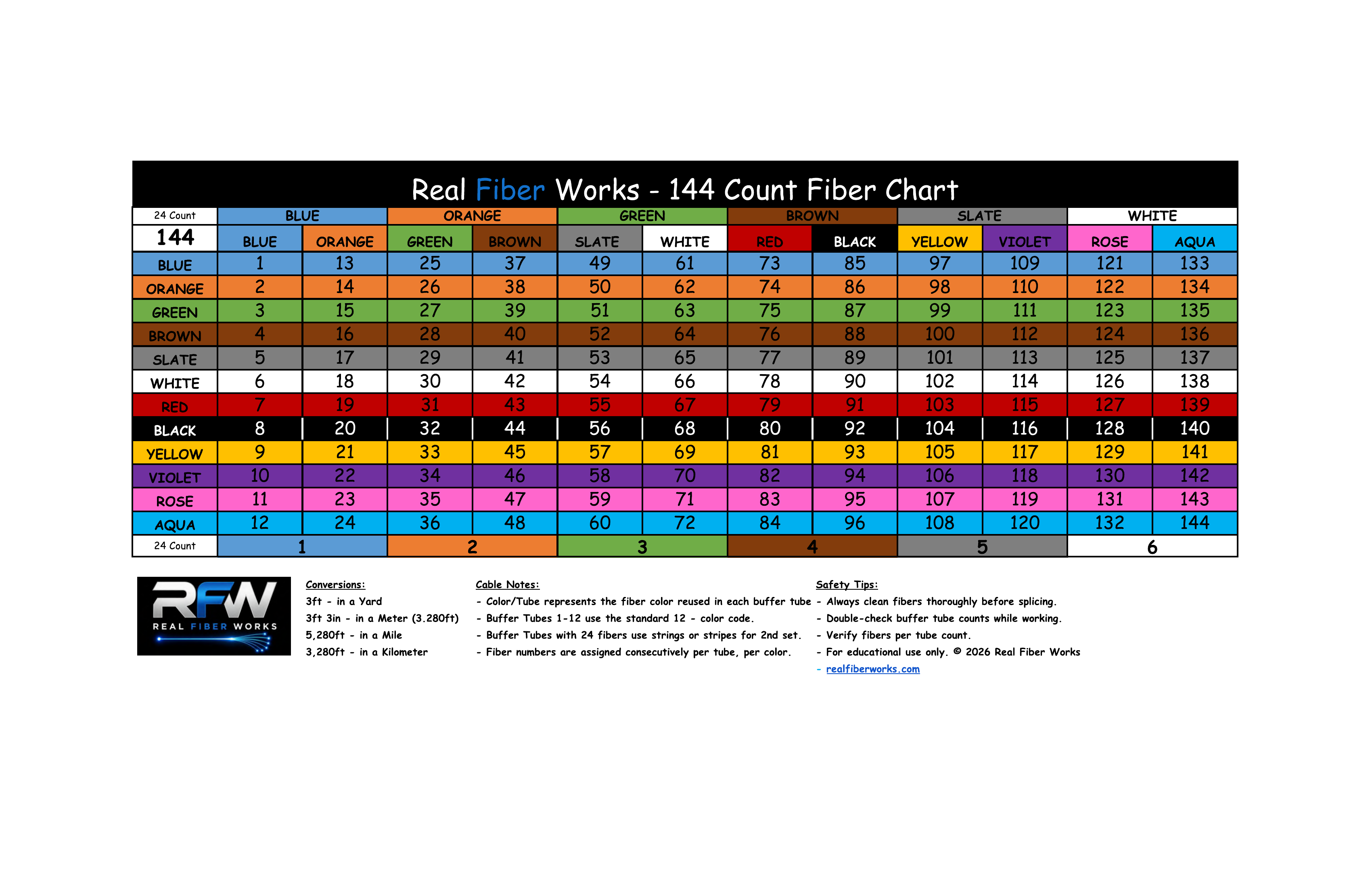

How to read this chart
- Colors 1–12 follow the standard sequence: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua.
- Each colored column represents one buffer tube (usually 12 fibers). Double columns represent 24 per tube.
- Tube numbers run across the top; individual fiber numbers are inside the cells.
- Designed horizontal so you can tape it on the back of a truck or hang it in the splice lab.
- Print this out on 11x17 landscape.
